上一次咱们讲了MVC概念,并且按MVC的方式在QML里创建了一个ListModel用于存放显示的数据,但是实际上数据在咱们这个应用上一般来自C++一侧,所以还是需要能在C++那边提供数据,在QML上显示才行,因为也刚刚学这部分,所以理解也不深.目前我的理解是创建一个 QAbstractListModel 的子类,然后在这个类里实现一个存储所有对应的KV数据的机制并对外提供增删读写的标准接口.然后把这个类在C++侧实例化然后注册到QML上下文,就可以在QML侧调用了.
直接贴代码吧.
fund_list.h文件内容:
#ifndef FUND_LIST_DATA_MODEL_H
#define FUND_LIST_DATA_MODEL_H
#include <QAbstractListModel>
class Data
{
public:
Data(void);
Data(const QString &fund_name,int fund_code,double fund_net_worth,double fund_expect_worth,double fund_expect_growth,const QString &fund_net_worth_date,const QString &fund_expect_worth_date);
QString fund_name() const;
int fund_code() const;
double fund_net_worth() const;
double fund_expect_worth() const;
double fund_expect_growth() const;
QString fund_net_worth_date() const;
QString fund_expect_worth_date() const;
private:
QString fund_name_;
int fund_code_;
double fund_net_worth_;
double fund_expect_worth_;
double fund_expect_growth_;
QString fund_net_worth_date_;
QString fund_expect_worth_date_;
};
class DataModel : public QAbstractListModel
{
Q_OBJECT
public:
enum DataRoles{
FundNameRole = Qt::UserRole + 1,
FundCodeRole,
FundNetWorthRole,
FundExpectWorthRole,
FundExpectGrowthRole,
FundNetWorthDateRole,
FundExpectWorthDateRole
};
explicit DataModel(QObject *parent = nullptr);
~DataModel();
int rowCount(const QModelIndex &parent = QModelIndex()) const override;
QVariant data(const QModelIndex &index, int role = Qt::DisplayRole) const override;
// Add data:
Q_INVOKABLE void insert(int index,const Data &data) ;
// Remove data:
Q_INVOKABLE void remove(int index);
Q_INVOKABLE void append(const QString &fund_name,int fund_code,double fund_net_worth,double fund_expect_worth,double fund_expect_growth,const QString &fund_net_worth_date,const QString &fund_expect_worth_date);
int count() const;
protected: // interface QAbstractListModel
virtual QHash<int, QByteArray> roleNames() const;
private:
QList<Data> dataList_;
};
#endif // FUND_LIST_DATA_MODEL_H
fund_list.c文件内容:
#include "fund_list.h"
Data::Data(void)
{
fund_name_= "NULL";
fund_code_ = 0;
fund_net_worth_ = 0.0;
fund_expect_worth_ = 0.0;
fund_expect_growth_ = 0.0;
fund_net_worth_date_ = "NULL";
fund_expect_worth_date_ = "NULL";
}
Data::Data(const QString &fund_name,int fund_code,double fund_net_worth,double fund_expect_worth,double fund_expect_growth,const QString &fund_net_worth_date,const QString &fund_expect_worth_date)
{
fund_name_= fund_name;
fund_code_ = fund_code;
fund_net_worth_ = fund_net_worth;
fund_expect_worth_ = fund_expect_worth;
fund_expect_growth_ = fund_expect_growth;
fund_net_worth_date_ = fund_net_worth_date;
fund_expect_worth_date_ = fund_expect_worth_date;
}
QString Data::fund_name() const
{
return fund_name_;
}
int Data::fund_code() const
{
return fund_code_;
}
double Data::fund_net_worth() const
{
return fund_net_worth_;
}
double Data::fund_expect_worth() const
{
return fund_expect_worth_;
}
double Data::fund_expect_growth() const
{
return fund_expect_growth_;
}
QString Data::fund_net_worth_date() const
{
return fund_net_worth_date_;
}
QString Data::fund_expect_worth_date() const
{
return fund_expect_worth_date_;
}
DataModel::DataModel(QObject *parent)
: QAbstractListModel(parent)
{
}
DataModel::~DataModel()
{
}
int DataModel::rowCount(const QModelIndex &parent) const
{
Q_UNUSED(parent);
return dataList_.count();
}
QVariant DataModel::data(const QModelIndex &index, int role) const
{
int row = index.row();
if(row < 0 || row >= dataList_.count())
{
return QVariant();
}
const Data &data = dataList_[row];
switch (role)
{
case FundNameRole:
return data.fund_name();
case FundCodeRole:
return data.fund_code();
case FundNetWorthRole:
return data.fund_net_worth();
case FundExpectWorthRole:
return data.fund_expect_worth();
case FundExpectGrowthRole:
return data.fund_expect_growth();
case FundNetWorthDateRole:
return data.fund_net_worth_date();
case FundExpectWorthDateRole:
return data.fund_expect_worth_date();
}
return QVariant();
}
//dm : data model
QHash<int, QByteArray> DataModel::roleNames() const
{
QHash<int, QByteArray> roles;
roles[FundNameRole] = "fundName";
roles[FundCodeRole] = "fundCode";
roles[FundNetWorthRole] = "fundNetWorth";
roles[FundExpectWorthRole] = "fundExpectWorth";
roles[FundExpectGrowthRole] = "fundExpectGrowth";
roles[FundNetWorthDateRole] = "fundNet_worthDate";
roles[FundExpectWorthDateRole] = "fundExpectWorthDate";
return roles;
// emit countChanged(m_data.count());
}
void DataModel::insert(int index, const Data &data)
{
if(index < 0 || index > dataList_.count()) {
return;
}
emit beginInsertRows(QModelIndex(), index, index);
dataList_.insert(index, data);
emit endInsertRows();
// emit countChanged(m_data.count());
}
void DataModel::remove(int index)
{
if(index < 0 || index >= dataList_.count()) {
return;
}
beginRemoveRows(QModelIndex(), index, index);
dataList_.removeAt(index);
endRemoveRows();
}
void DataModel::append(const QString &fund_name,int fund_code,double fund_net_worth,double fund_expect_worth,double fund_expect_growth,const QString &fund_net_worth_date,const QString &fund_expect_worth_date)
{
insert(count(), Data(fund_name,fund_code,fund_net_worth,fund_expect_worth,fund_expect_growth,fund_net_worth_date,fund_expect_worth_date));
}
int DataModel::count() const
{
return rowCount(QModelIndex());
}
main.qml文件内容:
import QtQuick 2.12
import QtQuick.Window 2.12
import Toou2D 1.0
import "."
Window {
id: window
visible: true
width: 640
height: 480
title: qsTr("苏阳基金查看器v1.0")
ListView{
anchors.right: parent.right
anchors.rightMargin: 10
anchors.left: parent.left
anchors.leftMargin: 10
anchors.top: parent.top
anchors.topMargin: 10
anchors.bottom: parent.bottom
anchors.bottomMargin: 30
width: 600
height: 400
id:listView
spacing: 10
model:$Model
delegate:delegate1
}
Component {
id: delegate1
Fund_info_box
{
fund_code:fundCode// 基金代码
fund_name:fundName// 基金名称
//fund_net_worth:fundNetWorth// 基金单位净值
fund_expect_worth:"净值估算:"+fundExpectWorth// 基金净值估算
fund_expect_growth:"净值估算日涨幅:"+fundExpectGrowth+"%"// 基金净单位净值估算日涨幅
//fund_net_worth_date:fundNetWorthDate// 基金净值更新日期
//fund_expect_worth_date:fundExpectWorthDate// 基金净值估算更新日期
anchors.right: parent.right
anchors.left: parent.left
onRemove_fund_info_box:{
console.log("Fund_Code:"+fundCode)
}
}
}
}
main.cpp文件内容:
#include <QGuiApplication>
#include <QQmlApplicationEngine>
#include "fund_http_manager.h"
#include <QSslSocket>
#include "fund_list.h"
#include <QQmlContext>
int main(int argc, char *argv[])
{
DataModel model;
model.append("银河创新成长混合",519674,1.0,1.7447,-0.24,"123","123");
model.append("诺安成长混合",320007,1.0,5.8416,-0.3,"123","123");
model.append("招商中证白酒指数分级",161725,1.0,1.2081,3.43,"123","123");
QCoreApplication::setAttribute(Qt::AA_EnableHighDpiScaling);
QGuiApplication app(argc, argv);
QQmlApplicationEngine engine;
engine.rootContext()->setContextProperty("$Model",&model);
const QUrl url(QStringLiteral("qrc:/main.qml"));
QObject::connect(&engine, &QQmlApplicationEngine::objectCreated,
&app, [url](QObject *obj, const QUrl &objUrl) {
if (!obj && url == objUrl)
QCoreApplication::exit(-1);
}, Qt::QueuedConnection);
engine.load(url);
qDebug()<<"QSslSocket="<<QSslSocket::sslLibraryBuildVersionString();
qDebug() << "OpenSSL支持情况:" << QSslSocket::supportsSsl();
//Fund_HTTP_Manager* tmp = Fund_HTTP_Manager::getInstance();
//tmp->Slot_QueryFundInfo("320007");
return app.exec();
}

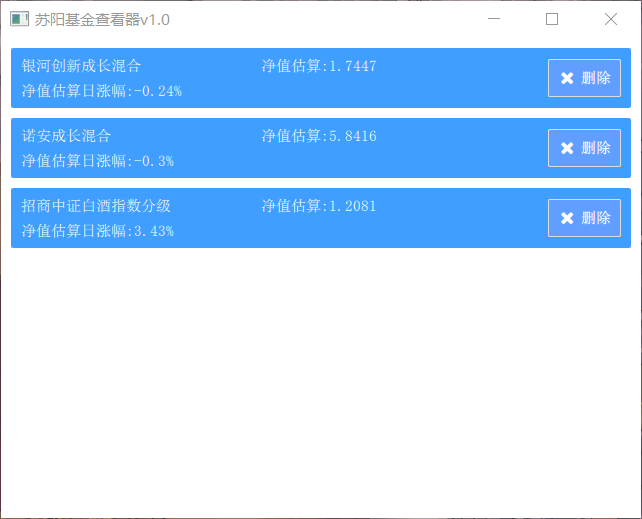

实际的界面效果是这样的.
